Understanding "Mesh Count" in Welded Wire Mesh
Understanding "Mesh Count" in Welded Wire
The "mesh count" of welded wire refers to the number of openings per unit length (typically 1 inch or 1 centimeter) along the horizontal or vertical direction. It is a critical parameter for determining wire density and specifications. Here’s a detailed breakdown:
1. Definition of Mesh Count
-
Horizontal Mesh Count: Number of openings per inch (or centimeter) horizontally.
-
Vertical Mesh Count: Number of openings per inch (or centimeter) vertically.
(In most cases, welded wire has equal horizontal and vertical mesh counts, forming uniform grids.)
Example:
-
Mesh Count = 10×10 → 10 openings per inch horizontally and vertically.
-
Mesh Count = 5×5 → Larger openings with lower density.
2. Relationship Between Mesh Count and Opening Size
Higher mesh count = smaller openings and denser wire; lower mesh count = larger openings and sparser wire.

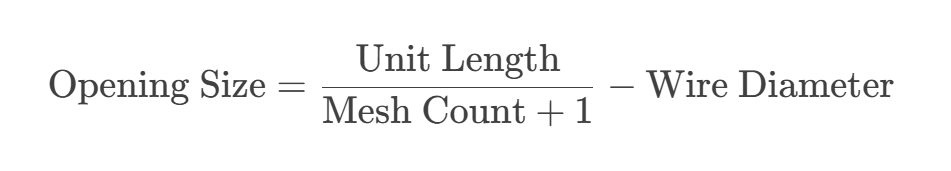

Formula:
Example:
-
Mesh Count = 10×10, Wire Diameter = 1mm → Opening ≈ (25.4mm/10) −1 ≈1.54mm.
3. Practical Applications by Mesh Count
Different mesh counts suit different purposes:
| Mesh Count Range | Density | Typical Applications |
|---|---|---|
| Low (2×2 to 5×5) | Large, sparse openings | Fencing, construction reinforcement, heavy-duty protection |
| Medium (6×6 to 10×10) | Moderate density | Garden protection, animal enclosures, industrial screening |
| High (12×12+) | Small, dense openings | Insect screens, precision filtration, poultry netting |
4. Key Factors for Selecting Mesh Count
-
Protection Needs: Guard against large animals (low count) vs. small pests/birds (high count).
-
Light/Airflow: Balance protection with plant growth requirements in gardening.
-
Load Capacity: Lower mesh counts often use thicker wires for higher strength.
5. Example of Welded Wire Specifications
A product labeled "10×10 Mesh, 1.2mm Wire Diameter, PVC Coated" indicates:
-
10 openings per inch, with ~1.5mm opening size.
-
Ideal for garden fencing, small animal enclosures, etc.
Conclusion
Mesh count is a core parameter when selecting welded wire, directly impacting its functionality and performance. By aligning mesh count, wire diameter, and coating with your specific needs (e.g., protection targets, environmental conditions), you ensure optimal results!
